PRODUCTS-Tooling
Minimize downtime and maximize rates
Spear Tool Head
XYZ’s end-of-arm tooling (EOAT) design increases the item handling range and boosts speed and robustness. Patent Pending.
Feature
-
Travel: 3.6 inches (91.44 mm)
-
Payload: 11.02 lbs (5 kg)
-
Tolerate sensor errors and unexpected collisions via breaking away feature
-
Automatic reset after breakaway
-
Length of the tube is customizable.
-
(Optional) Include mounting plate for your robots: ABB, UR, Fanuc, etc

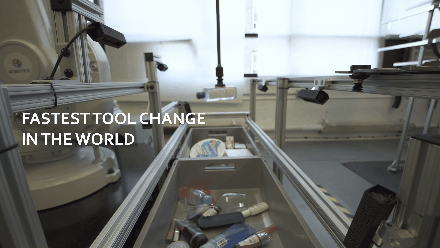

XYZ's JY Tool Changer increases the range of pickable objects with the industry leading speed. Patent Pending.
Feature
-
Swap time < 0.5 sec
-
Payload: 2.2 lbs (1 kg)
-
Self-centering tool head
JY Tool Changer
Application
-
Heavy items --> Large cup (e.g. shampoo bottles)
-
Small & light items --> Small cup (e.g. lipsticks)
-
Unsuctionable items --> Pneumatic gripper (e.g. forks)
_gif.gif)
Bag Cup for loose polybags
• Holding force:
6.8 lbs / 3.08 kg horizontally & vertically
• Holding force:
12.7 lbs / 5.76 kg vertically
10.2 lbs / 4.62 kg horizontally
XYZ's patented bag cup design allows for high vertical & lateral retention for loose polybags, and enables higher speeds for lower cycle times.
